Visibility Agent

Visibility agents can hide (or show) members or values in a data object, based on user-defined conditions.

As a Designer user, select an object and go to the Properties Smartpad to add a Visibility agent.

For each member/value, the agent will enforce its action when the condition is fulfilled.

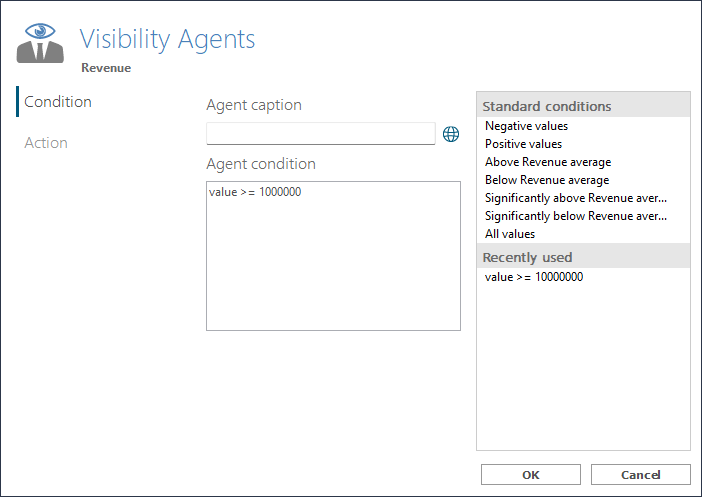

The condition can be a simple value threshold - as in the above example - or it can be a full calculation expression, e.g., "sum(d-1, 0, m2) > sum(d-1, 0, m1).

The condition is always evaluated to either 'True' or 'False'.

If 'True', the Action will take place.

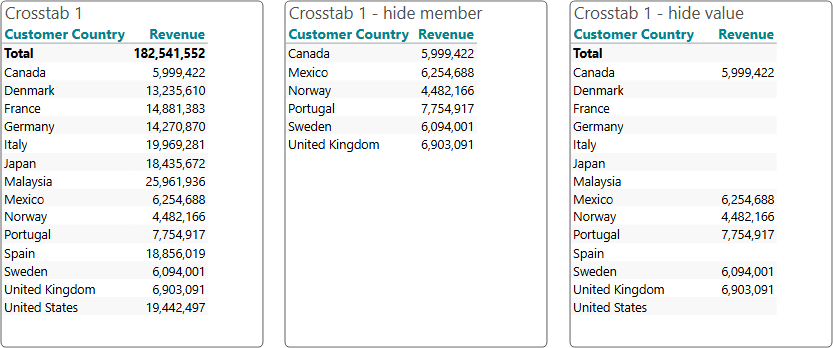

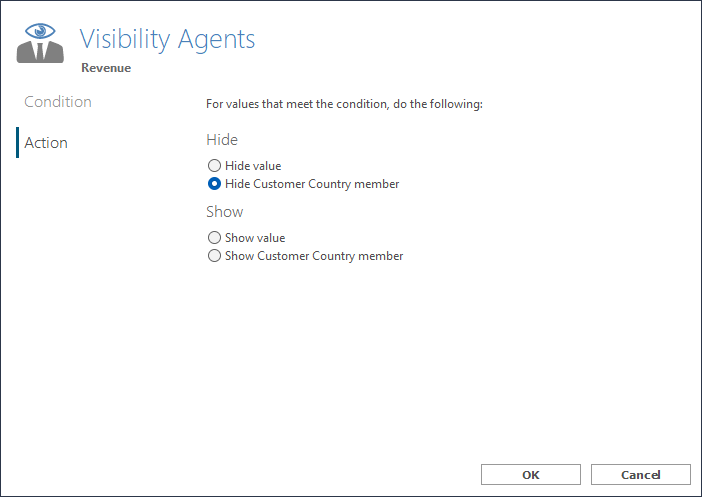

Above examples, implemented with two different actions:

Note: The 'Show' actions only makes sense if something has already been hidden by other visibility agents or visibility settings.
